Re: Sw20 Build

Postby Mrman » Tue Jul 04, 2017 6:59 pm

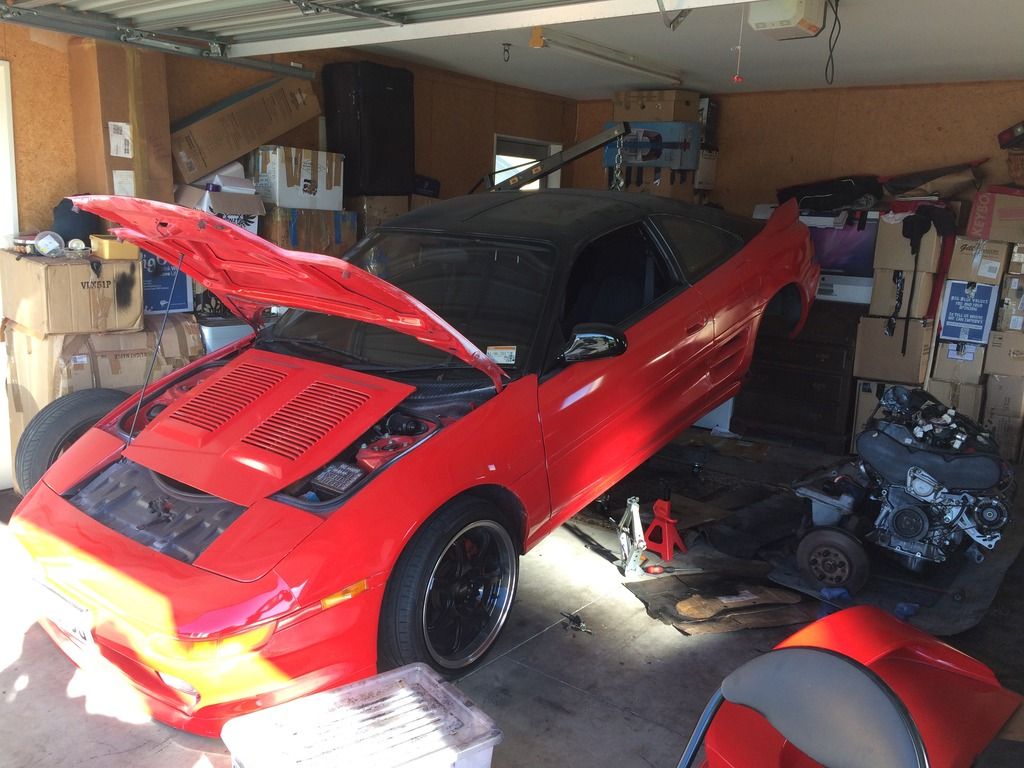

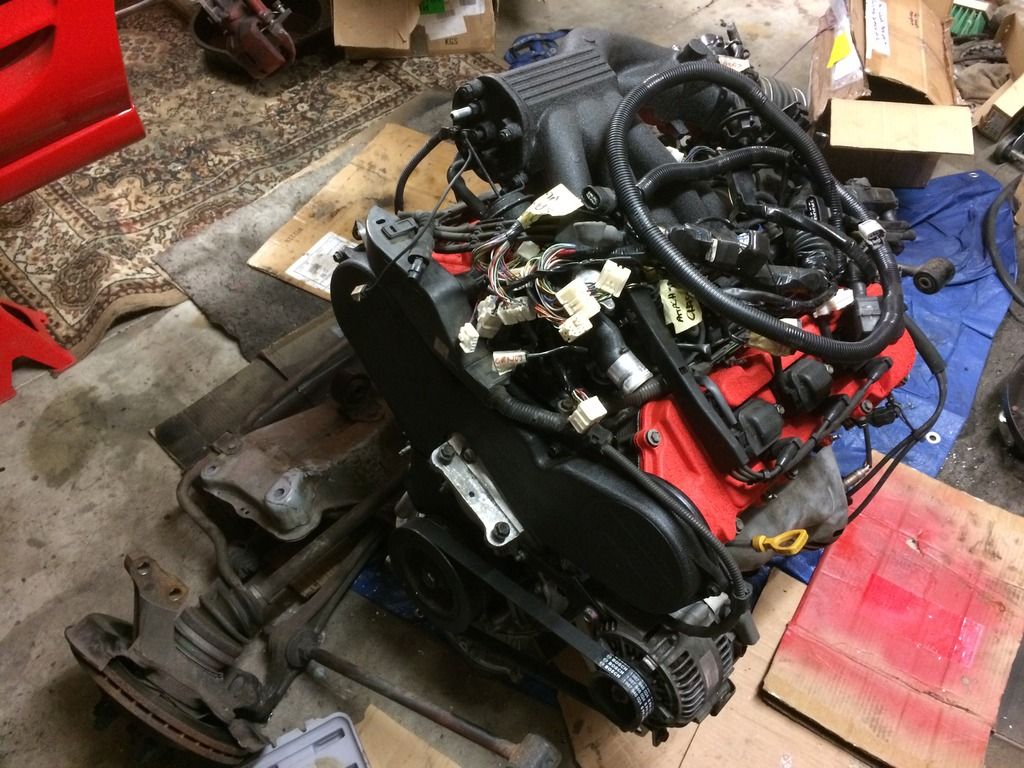

Out came the 3sge and the 1mzfe is ready to lift into the chassis
[gallery_image]Image[/gallery_image]

[gallery_image]Image[/gallery_image]

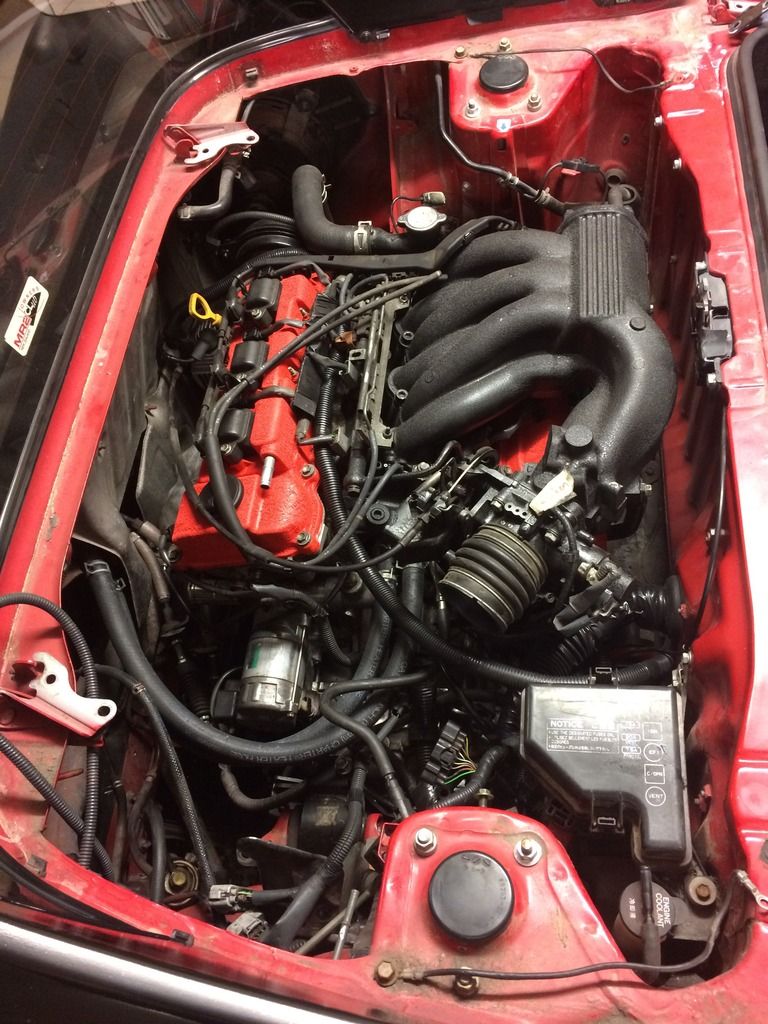

its in!
[gallery_image]Image[/gallery_image]

how I resolved the fuel supply issue with a bypass regulator
[gallery_image]Image[/gallery_image]

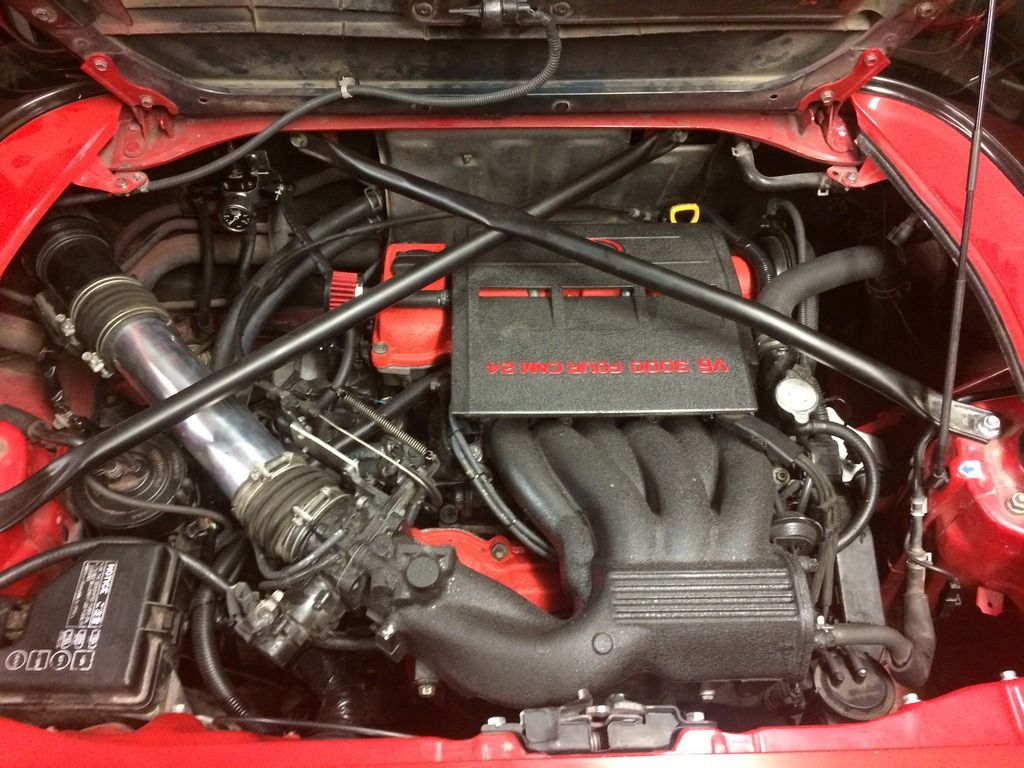

All back together
[gallery_image]Image[/gallery_image]

lasersooby
Club Member - MR2OCNZ
Posts: 159
Joined: Wed May 04, 2016 8:47 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Mo

Re: Sw20 Build

Postby lasersooby » Tue Jul 04, 2017 8:25 pm

Shaun, looks bloody good mate. Have you had it on the road yet?
Daily Drive: 2005 Honda CR-V Sport (Auto)
When the Wife Allows: 2015 Toyota Highlander ZR (SOLD), ordered RAV4 Limited Hybrid TRD del April 2020
If the Weather is Nice: 2000 GDBSTiV7 Subaru
Looking Forward To: Supercharged MR2

User avatar
Mrman
Club Member - MR2OCNZ
Posts: 342
Joined: Mon Apr 10, 2017 5:25 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Shaun

Re: Sw20 Build

Postby Mrman » Tue Jul 04, 2017 8:35 pm

lasersooby wrote:Shaun, looks bloody good mate. Have you had it on the road yet?


Yes it's fully back together and driving, I just have to make a couple small support brackets for the radiator pipe and the air intake and paint the exhaust I made for it. But is is running great so far. There is a huge difference in performance aswell

User avatar
GDII
Club Member - MR2OCNZ
Posts: 3890
Joined: Sun Jul 10, 2011 5:13 pm
Stomping Ground: Wellington
Prime Mover: SW20
First name: Phill

Re: Sw20 Build

Postby GDII » Tue Jul 04, 2017 8:37 pm

That's looking really good. Great to see you sorted the fuel system. That's pretty much the only way to do it with the fuel rails on this engine. It's the same as the factory setup except the regulator isn't in the tank. This FPR will allow for a boosted setup if that ever happens which the stock Camry system can't handle.
1996 AE101 Corolla Sprint NZ New Daily
1990 SW20 MR2 G-Limited
2005 DY3 Demio
1990 EP81 Starlet XL (Sold)
1990 EE90 Corolla XL (Sold)
Instagram https://www.instagram.com/sw20glimited/

User avatar
4CylinderSpecial
Club Member - MR2OCNZ
Posts: 504
Joined: Wed Sep 16, 2015 8:30 pm
Stomping Ground: Auckland
Prime Mover: SW20
First name: Levi

Re: Sw20 Build

Postby 4CylinderSpecial » Tue Jul 04, 2017 10:07 pm

What's amazing is how it looks stock if you didn't know any better. Great job!

User avatar
Benckj
Forum Moderator - MR2OCNZ
Posts: 6885
Joined: Thu Nov 24, 2005 12:44 pm
Stomping Ground: Otago
Prime Mover: More than one MR2
First name: Jim

Re: Sw20 Build

Postby Benckj » Wed Jul 05, 2017 6:38 am

What place did you get the head kit from in the US and are you happy with quality? I'm just looking at same options to do my 100k service on a v6 Pajero.
Jim Benck
90 rev 1 parts car
98 rev 5 GT- all the mods

User avatar
Mrman
Club Member - MR2OCNZ
Posts: 342
Joined: Mon Apr 10, 2017 5:25 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Shaun

Re: Sw20 Build

Postby Mrman » Wed Jul 05, 2017 7:05 am

GDII wrote:That's looking really good. Great to see you sorted the fuel system. That's pretty much the only way to do it with the fuel rails on this engine. It's the same as the factory setup except the regulator isn't in the tank. This FPR will allow for a boosted setup if that ever happens which the stock Camry system can't handle.


Yeah I didn't really want to mess around with tapping the fuel rails so this was a simple(but expensive) solution

User avatar
Mrman
Club Member - MR2OCNZ
Posts: 342
Joined: Mon Apr 10, 2017 5:25 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Shaun

Re: Sw20 Build

Postby Mrman » Wed Jul 05, 2017 7:05 am

4CylinderSpecial wrote:What's amazing is how it looks stock if you didn't know any better. Great job!


Thanks

User avatar
Mrman
Club Member - MR2OCNZ
Posts: 342
Joined: Mon Apr 10, 2017 5:25 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Shaun

Re: Sw20 Build

Postby Mrman » Wed Jul 05, 2017 7:12 am

Benckj wrote:What place did you get the head kit from in the US and are you happy with quality? I'm just looking at same options to do my 100k service on a v6 Pajero.


I got the cambelt kit through the states and it is all gates so good quality cost about $250 with belt water pump, tensioner and both bearings the seller was Sixity auto on eBay. the head gaskets I got through Toyota I couldn't believe they were only $140. And all the little seals I got off eBay and they seem to be fine

Spykerwolf
Club Member - MR2OCNZ
Posts: 213
Joined: Sun Sep 06, 2015 9:55 pm
Stomping Ground: Auckland
Prime Mover: Looking for an MR2
First name: Will

Re: Sw20 Build

Postby Spykerwolf » Wed Jul 05, 2017 11:03 am

Damn that looks great man, time to upload some videos! :lol:
Current: None
Past: '92 NA Hardtop manual

User avatar
Benckj
Forum Moderator - MR2OCNZ
Posts: 6885
Joined: Thu Nov 24, 2005 12:44 pm
Stomping Ground: Otago
Prime Mover: More than one MR2
First name: Jim

Re: Sw20 Build

Postby Benckj » Wed Jul 05, 2017 2:26 pm

I got the cambelt kit through the states and it is all gates so good quality cost about $250 with belt water pump, tensioner and both bearings the seller was Sixity auto on eBay. the head gaskets I got through Toyota I couldn't believe they were only $140. And all the little seals I got off eBay and they seem to be fine
I've looked at the ebay sites but favour going with an auto parts supply company like Rockauto.com so I can get all parts required from one place which will save a considerable amount on shipping. Just not convinced the quality is good and if parts do not fit I'm faced with returning or buying elsewhere.
Jim Benck
90 rev 1 parts car
98 rev 5 GT- all the mods

User avatar
Mrman
Club Member - MR2OCNZ
Posts: 342
Joined: Mon Apr 10, 2017 5:25 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Shaun

Re: Sw20 Build

Postby Mrman » Sun Jul 09, 2017 5:59 pm

Here is a walk through video on the car for anyone interested

[youtube-embed]https://www.youtube.com/watch?v=4Q_6TTbhyGA[/youtube-embed]

User avatar
Mrman
Club Member - MR2OCNZ
Posts: 342
Joined: Mon Apr 10, 2017 5:25 pm
Stomping Ground: Manawatu
Prime Mover: SW20
First name: Shaun

Re: Sw20 Build

Postby Mrman » Sun Jul 09, 2017 6:02 pm


Spykerwolf
Club Member - MR2OCNZ
Posts: 213
Joined: Sun Sep 06, 2015 9:55 pm
Stomping Ground: Auckland
Prime Mover: Looking for an MR2
First name: Will

Re: Sw20 Build

Postby Spykerwolf » Sun Jul 09, 2017 8:08 pm

Nice video man!
Current: None
Past: '92 NA Hardtop manual

User avatar
GDII
Club Member - MR2OCNZ
Posts: 3890
Joined: Sun Jul 10, 2011 5:13 pm
Stomping Ground: Wellington
Prime Mover: SW20
First name: Phill

Re: Sw20 Build

Postby GDII » Sun Jul 09, 2017 8:36 pm

Spykerwolf wrote:Nice video man!

What he said. Easy to watch and follow what you were talking about.
1996 AE101 Corolla Sprint NZ New Daily
1990 SW20 MR2 G-Limited
2005 DY3 Demio
1990 EP81 Starlet XL (Sold)
1990 EE90 Corolla XL (Sold)
Instagram https://www.instagram.com/sw20glimited/
